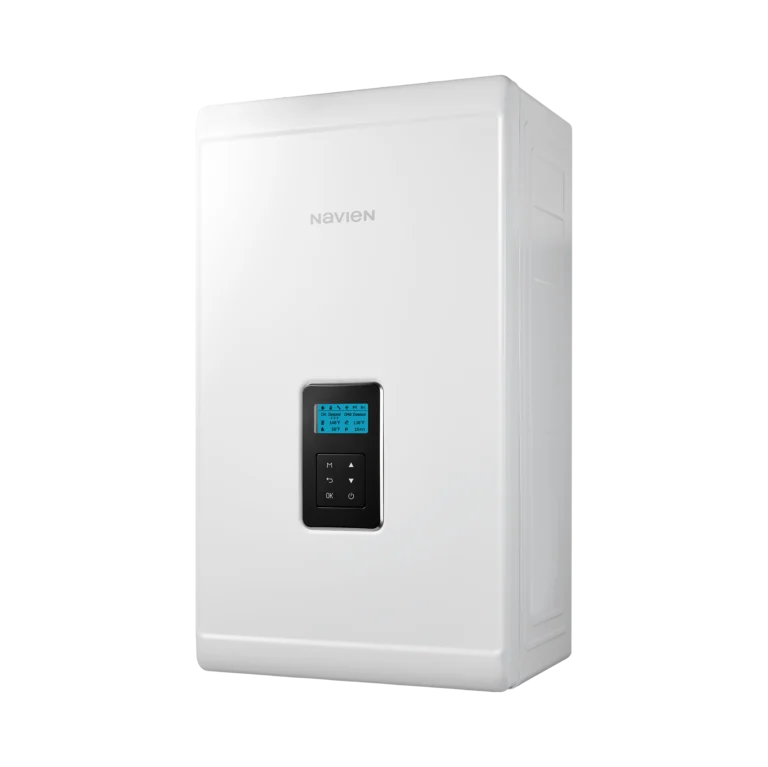

NCB500 System Boiler For Installers
The Navien NCB500 system boiler is the ideal choice for installers working with homeowners who are seeking to upgrade their existing system boiler to a more powerful, reliable heating solution or want to have system boiler system for the property
The NCB500 delivers consistent high performance while maintaining a compact footprint – perfect for installation in kitchens or airing cupboards.
The NCB500 System Boiler has an easy set-up process and is compatible with the latest Navien Smart Controls, giving your customers full control of their heating system. With 10-year warranty for complete peace of mind.
- Easy commission set-up wizard
- LPG Conversion Kit included
- Compatible with Navien Multikit
- 3-zone ready with Smart Plus control pack
- Compact dimensions for easy installation in a kitchen cupboard
- Durable stainless steel heat exchangers
- 10-Year Warranty
Technical Data
| NCB500-15k | NCB500-18k | NCB500-24k | NCB500-30k | ||
| Heat output | Heat input range | 15.5/2.7 | 18.6/3.2 | 24.7/4.3 | 31.0/4.6 |
| Modulation (max/min) | 6:1 | 6:1 | 6:1 | 7:1 | |
| Heat output range @ 80/60°C | 15.0/2.6kW | 18.0/3.1kW | 24.0/4.2kW | 30.0/4.5kW | |
| Condensing heat output range @ 50/30°C | 16.4/2.9kW | 19.4/3.4kW | 25.6/4.5kW | 32.6/4.8kW | |
| Full load efficiency at Max. output @ 50/30°C (Condensing) | 105.9% | 104.6% | 106.5% | 105.2% | |
| Max. heating operation pressure | 2.5 Bar | ||||
| Max. heating temperature | 90°C | ||||
| Adjustable heating temperature range | 40-90°C | ||||
| Flue | Flue Size | Coaxial length Ø 60/100 | |||
| Max. horizontal coaxial length ø60/100 | 8m | ||||
| Max. vertical coaxial length Ø60/100 | 8m | ||||
| Weight (Kg) | 27 | 29 | 32 | ||
| Dimensions | 395 x 283 x 680mm | ||||
| ErP Efficiency | ErP A (93%) | ||||
| ErP Efficiency with Smart Plus (x3) | ErP A+ (98%) | ||||
