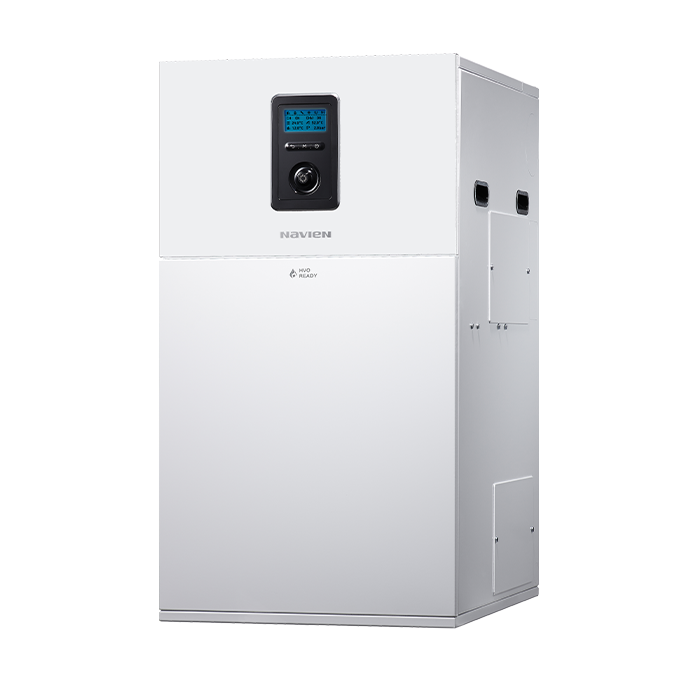

LCB700 Blue Flame Regular Boiler – Internal Model
Our new LCB700 Blue Flame range of oil boilers is the first in the UK market to offer an A+ energy rating, thanks to an exceptional design and the latest smart control systems.*
Combined with easy to install features, such as a combined PRV/condensate drain and flexible pipework arrangements, the LCB700 Blue Flame is a boiler like no other.
- 10-year parts and labour warranty as standard
- HVO compatible
- Future proof Blue Flame technology delivers superior efficiency and ultra-low NOx emissions
- Lightweight design for easy installation
- Clean and modern design
- Stainless steel heat exchangers for optimum durability and long term efficiencies
- Flue venting up to 21m in horizontal and vertical arrangements
- Flexible installation options thanks to compact design and flueing
- Achieves highest 3-star mark in DHW performance (in accordance with EN Regulations)
- 3-zone ready with Smart Plus control pack

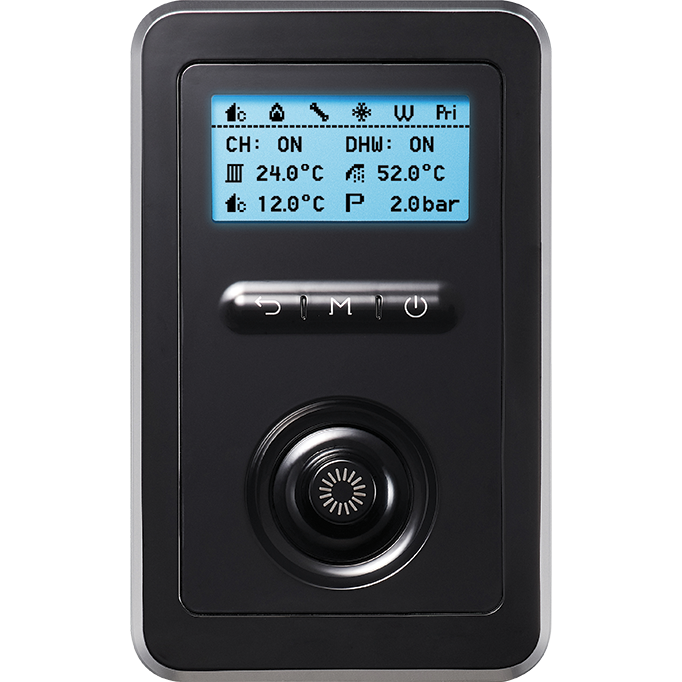

- Text driven integral display for intuitive control and fuel consumption figures
- Class leading energy efficiency for reduced running costs
* An A+ energy rating is achieved when installed with 3 Smart Plus room thermostats.
Technical Data
| 21 - RS / LS / LC | 28 - RS / LS / LC | 36 - RS / LS / LC | 21 - RSX / LSX / LCX | 28 - RSX / LSX / LCX | 36 - RSX / LSX / LCX | ||
| Heat Output | 80/60°C | 16/21kW | 21/28kW | 29/36kW | 16/21kW | 21/28kW | 29/36kW |
| 50/30°C | 23.0kW | 30.3kW | 39.0kW | 23.0kW | 30.3kW | 39.0kW | |
| Flue | Flue Size | Coaxial Plastic Ø 60/100 | |||||
| Max Horizontal Length | 20m | ||||||
| Max Vertical Length | 21m | ||||||
| Dimensions | Regular/System Model | 470 x 600 x 860mm | |||||
| Weight | Regular | 58kg | 59kg | 62kg | 64kg | 65kg | 68kg |
| System | 66kg | 67kg | 70kg | 72kg | 73kg | 76kg | |
| ErP Efficiency | ErP A (93%) | ||||||
| ErP Efficiency with Smart Plus (x3) | ErP A+ (98%) | ||||||
| EN Regulation (EN13203-1) | |||||||
| NOx Emission Rate | 57.2mg/kWh | 57.2mg/kWh | 63.2mg/kWh | 57.2mg/kWh | 62.5mg/kWh | 63.2mg/kWh | |
Downloads
- LCB700 Installer Brochure (19.58 MB)
- LCB700 Installation/Operation Manual (55.76 MB)
- Case Study: Historic Grade I residence (874.95 KB)
- Case Study: Preston property receives heating upgrade (500.69 KB)
- Case Study: Scottish family home (697.17 KB)
- Case Study: Upgrade for Grade II listed home (1.27 MB)
