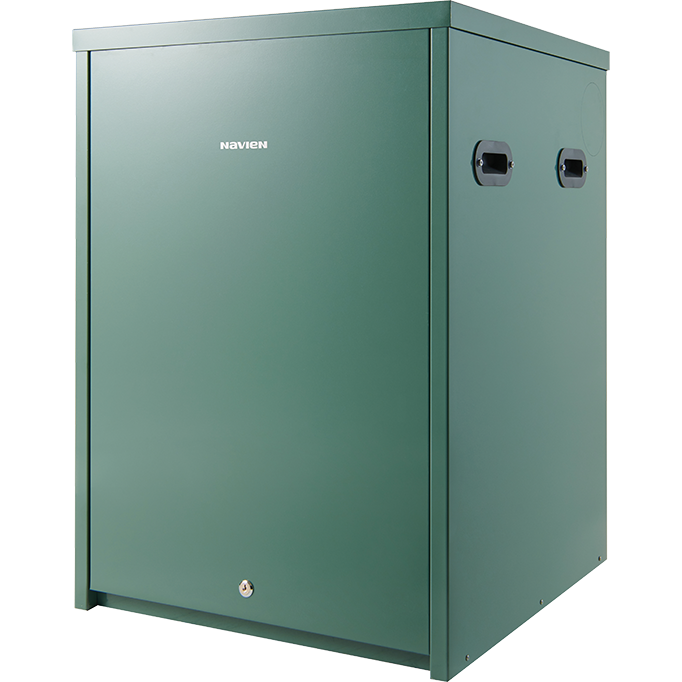

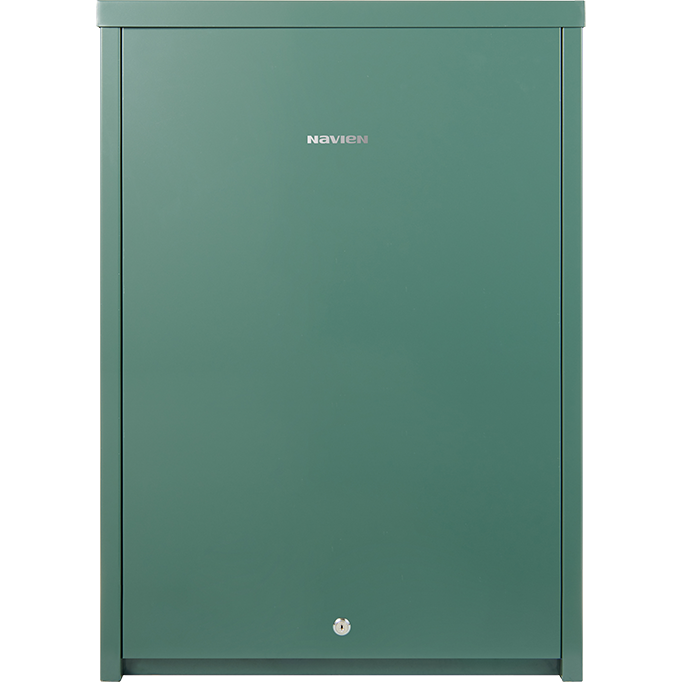

LCB700 Blue Flame Combi Boiler – External Model for installers
The LCB700 Blue Flame Combi Boiler range can achieve an A+ energy rating when combined with 3 Smart Plus room thermostats – being the first in the UK market to do so. The PRV/Condensate drain, and flexible pipework arrangements make it simple to install, cutting down on installation times.
- HVO compatible
- ErP A+ energy efficiency rating*
- Durable stainless steel heat exchangers
- Blue Flame technology delivers superior efficiency and ultra-low NOx emissions
- 10-year parts and labour warranty as standard
- Lightweight design for easy installation
- Flue venting up to 21m in horizontal and vertical arrangements
- Flexible installation options thanks to compact design and flueing
- Achieves highest 3-star mark in DHW performance (in accordance with EN Regulations)
- 3-zone ready with Smart Plus control pack

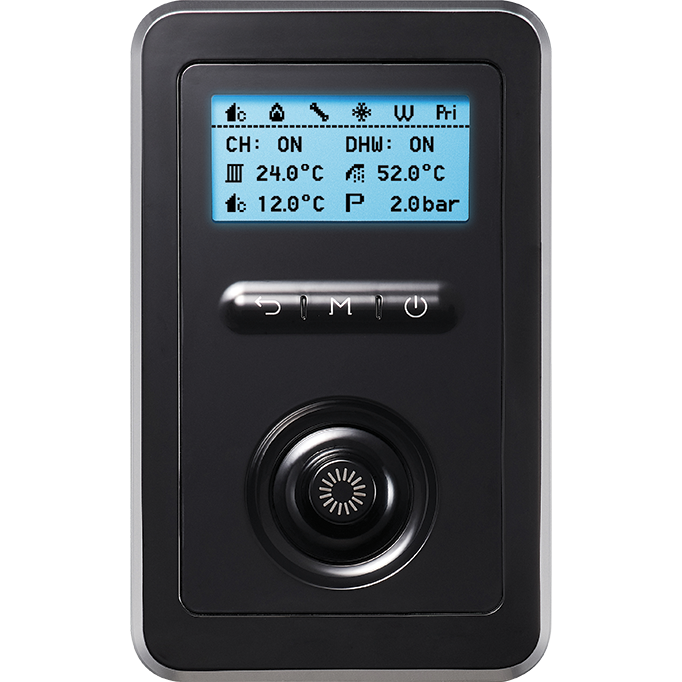

- Text driven integral display for intuitive control and fuel consumption figures
* An A+ energy rating is achieved when installed with 3 Smart Plus room thermostats.
Technical Data
| 21 - RS / LS / LC | 28 - RS / LS / LC | 36 - RS / LS / LC | 21 - RSX / LSX / LCX | 28 - RSX / LSX / LCX | 36 - RSX / LSX / LCX | ||
| Heat Output | 80/60°C | 16/21kW | 21/28kW | 29/36kW | 16/21kW | 21/28kW | 29/36kW |
| 50/30°C | 23.0kW | 30.3kW | 39.0kW | 23.0kW | 30.3kW | 39.0kW | |
| DHW | Maximum Flow Rate (±15%) | 14L/min | 18L/min | 20L/min | 14L/min | 18L/min | 20L/min |
| DHW Control Range | 30-60°C (Default 50°C) | ||||||
| Maximum hot water temperature rise for 90 litres draw off (@max flow rate) | 40°C | ||||||
| Flue | Flue Size | Coaxial Plastic Ø 60/100 | |||||
| Max Horizontal Length | 20m | ||||||
| Max Vertical Length | 21m | ||||||
| Dimensions | Combi Model | 600 x 600 x 860mm | 650 x 673 x 900mm | ||||
| Weight | Combi | 91kg | 98kg | ||||
| ErP Efficiency | ErP A (93%) | ||||||
| ErP Efficiency with Smart Plus | ErP A+ (98%) | ||||||
| EN Regulation (EN13203-1) | |||||||
| NOx Emission Rate | 57.2mg/kWh | 57.2mg/kWh | 63.2mg/kWh | 57.2mg/kWh | 62.5mg/kWh | 63.2mg/kWh | |
LCB700 FAQ’s
What does the E302 fault code mean for the LCB700?
This means that the system pressure is too low and you may see that the system pressure gauge or the pressure reading on the front display indicates that the pressure in the system is below the 1 bar pressure. To re-pressurise the system you will find a filling loop (metal braided flexible hose) on a combi boiler version near the top right of the boiler with two tap connections at either end of the filling loop. Two small black tap handles.
The taps should be opened a quarter of a turn. Open one small black tap one and then open slowly the other small black one. The water will start to refill the system (water should be heard filling the system). You should see the pressure gauge or the reading on the front display rise back up between 1 bar and 1.2 bar pressure and then stop filling. Once the pressure gauge between 1 bar and 1.2 bar turn the taps back to the off position and the water will stop filling the system. The error code E302 will stop and the boiler will now operate. If the error code E302 is still active, fill up the system a little more but not over 1.5 bar.
(If you do fill the system too much and the pressure gauge is too high, just bleed water from a radiator until the pressure on the gauge goes down to below 1.2 bar).
